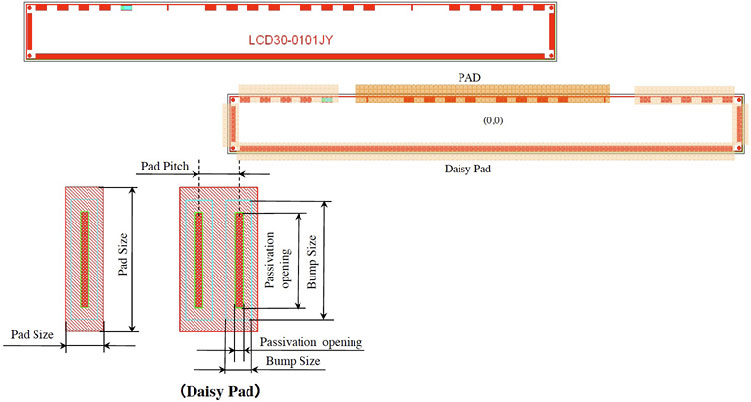

LCD30-0101JY
Chip Structure
- Base Layer : P-TEOS*
- Metal Layer : TiW / AI-1.0%Si-0.5%Cu
- Passivation Layer : P-TEOS* / P-SiN
*TEOS : Tetraethoxysilane
| Specifications | |
| Wafer Size | 6 inch |
| Chip Size | 15.1mm×1.6mm |
| Pad pitch | 30μm |
| Function | Daisy Chain |
| Pad config | Peripheral |
| Bump material(process) | Gold(plating) , Cu |
| Pad Size | 28μm×120μm |
| Passivation opening | 6μm×80μm |
| UBM Size | 20μm×100μm |
| Bump Size | 20μm×100μm |
| Scribe width | 100μm |
| Number of Pad | 726 pad/chip |
| Number of Chip | 530 chip/wafer |
