Dual Row MLF Dummy Components



Dual Row MLF

Dummy Components®

Amkor's new Dual Row MLF® (MicroLeadFrame®) package with 2 rows of lands is a cost effective, high performance dummy component solution for devices requiring up to 164 I/O. Typical applications include hard disk drives, USB controllers, and Wireless LAN. The small size and weight, along with excellent thermal and electrical performance, make the MLF® package an ideal choice for handheld portable applications such as cell phones and PDAs or any other application where size, weight and package performance are required issues.

Dual Row MLF

Part Description

Lead Count

Body Size

Pitch

Quantity
Per Tube

A-DualRowMLF124-10mm-.5mm

124

10mm

.5mm

30

A-DualRowMLF132-10mm-.5mm

132

10mm

.5mm

30

A-DualRowMLF156-12mm-.5mm

156

12mm

.5mm

25

A-DualRowMLF164-12mm-.5mm

164

12mm

.5mm

25



Notes

* Parts are packaged in tubes (standard).

* Parts are available in trays or on tape and reel upon special request.

* Solder plating finishes available are 85/15 SnPb and 100% Matte Sn.

* Moisture sensitivity level is JEDEC 1.

* Process flow is same as standard "punch" MLF®.

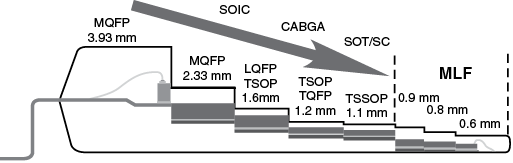

* Small size (reduce package footprint by 50% or more and improved RF performance) and weight.

* Dummy Dual row MLF® offers enhanced thermal capability.


Part Description System


* Add "TR" to end of part number for Tape and Reel.

* Add "Sn" to end of part number for Lead-Free.
