1 MilProbes for Ultra Fine Pitch Rework - BGA, Flip Chip, TAB, COB, etc.

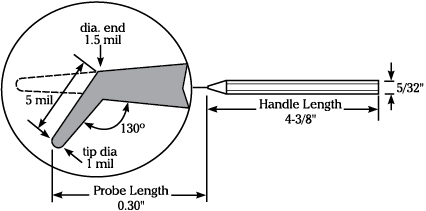

The RocHard 1 MilProbe is a 0.3" long Micro-tip in a 4 3/8" long hex shape stainless steel handle. The Micro-tip is tapered to a one mil diameter tip for TAB, BGA, and other ultra fine pitch rework. The tip is either straight (SH-341) or 50º angled at 5 mil from the point (SH-316). The different tip geometry allows the tips to reach between all circuit leads and traces under a microscope.



* The probe tip is strong and long lasting since it is made of special, proprietary alloy to achieve maximum strength.

* The hex shape stainless steel handle provides a easy grasp of the tool when operating under a microscope. It also prevents the tool from rolling on the work bench.

* To further increase the comfort of using the tool, a foam sleeve that goes onto the handle is available as an optional part.

* The 1 MilProbe comes with a protection cap and a vinyl pouch. The cap keeps the tip from damage and keeps the operator from injury. The pouch provides additional protection to the tip and provides a convenient way of storing and carrying the 1 MilProbe.



MilProbe Selection Guide

A = 1 MilProbes, B = 10 MilProbes, C = 25 MilProbes

Application

Pitch Size

2-10 mil

10-15 mil

15-25 mil

25-30 mil

30+ mil

Through-Hole

Testing Solder Joint &

Wire Bonding Strength

A

A, B

B

B, C

C

C

Straightening Leads & Wires

A

A, B

B

B, C

C

C

Cleaning Leads & Traces

A

A

B

B

C

C

Applying Epoxy

A

A

B

B

C

C
