SMTA Solder Paste Test Vehicle for Miniaturized Surface Mount Technology


Optimize the stencil printing and reflow portions of SMT assembly with this SMTA test vehicle.



Consumer demand has accelerated the pace of the electronics miniaturization trend, compelling assemblers to develop robust capabilities for 01005 components and 0.3mm pitch array packages in order to remain competitive. The process of acquiring these capabilities can be complex, as they involve numerous interactive factors. To optimize the stencil printing and reflow portions of SMT assembly given the challenging new realities, a process evaluation tool has been developed that provides a turnkey solution for solder paste performance testing.



0.5 mm pitch area arrays and 0201 chip components are considered mainstream SMT; however, many assemblers continue to struggle with yields on these packages. 0.4 mm area array and 01005 components are becoming more popular in design communities, and production levels are ramping up as electronic manufacturing service providers work to develop robust processes on their SMT lines. 0.3 mm pitch devices are emerging in highly miniaturized, high-value devices, and 0.25 mm pitch and 008004 chip components are in advanced assembly technology labs for initial process development.

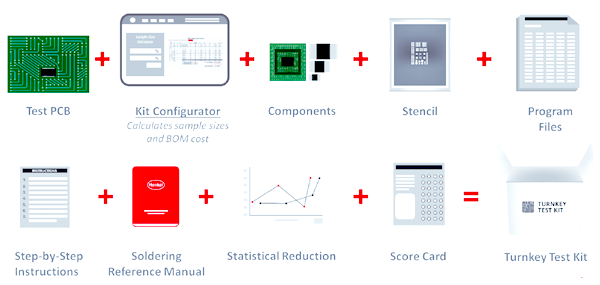

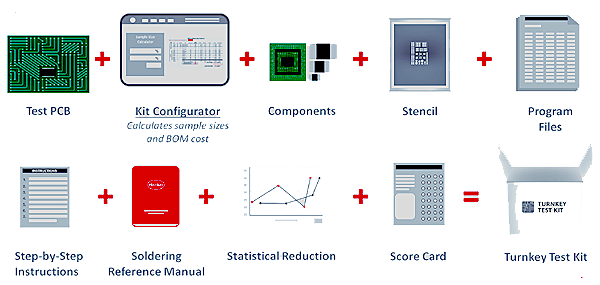

Given the challenging new realities, a process evaluation tool has been developed that provides a turnkey solution for solder paste performance testing.

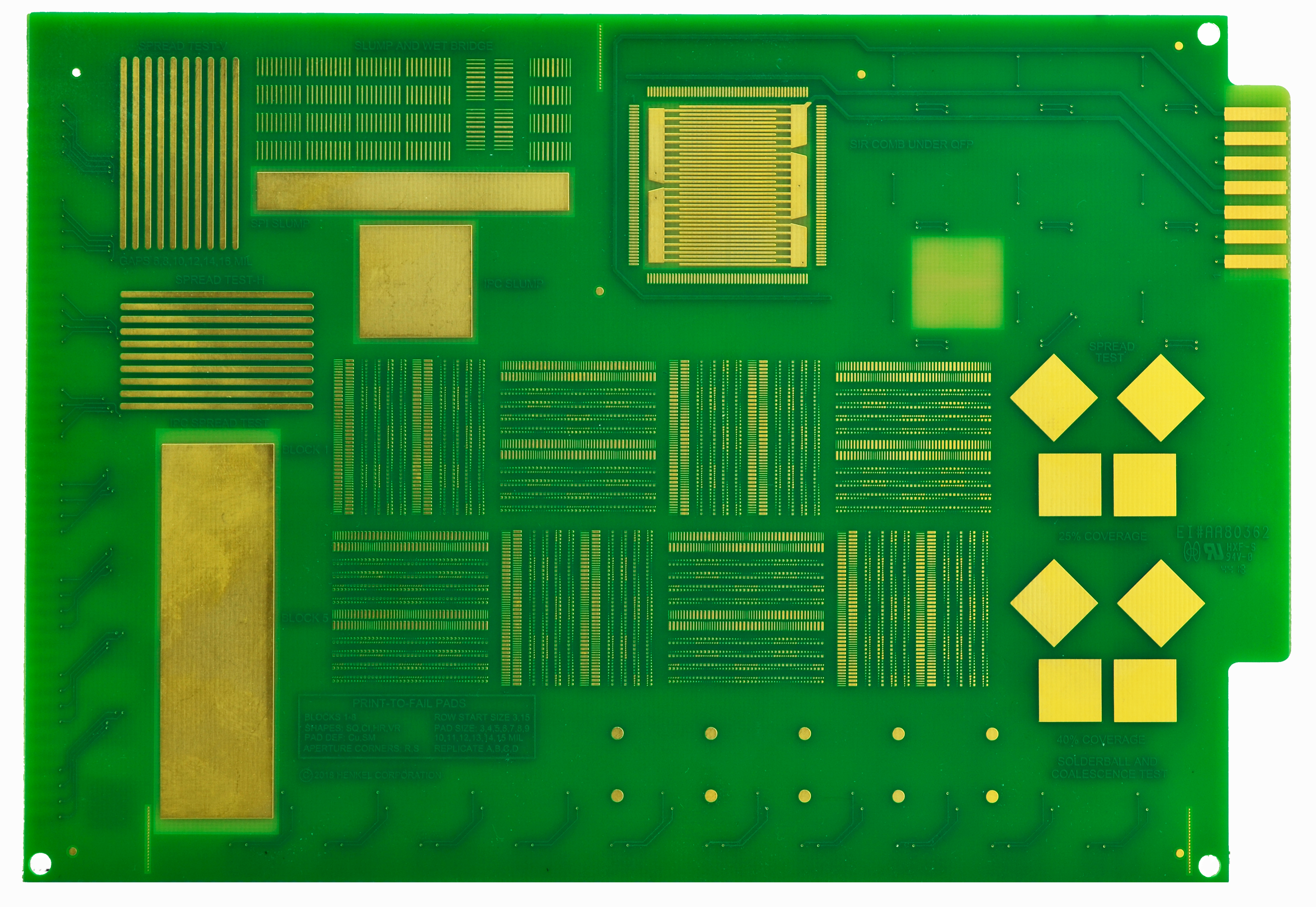

The board can be populated with a variety of components pitch from.5mm to 008004 depending on the users needs.  Call 888-388-7808 or email to configure your kit.



Pitch

I/O

Qty per board

Part Description

0.3mm

368

8

A-CVBGA368-.3MM-8MM-DC-LF-305

0.4mm

620

9

A-TMV620-.4mm-14mm-DC-LF-125

0.5mm

228

10

A-CTBGA228-.5mm-12mm-DC-LF-305

0.4mm

100

10

A-MLF100-12mm-.4mm-DC-Sn-T

1206

2

50

1206SMR-PA-5K-Sn-0

1206

2

50

1206SMC-PL-4K-LF

0603

2

50

0603-SMR-PA-5K-Sn-0

0603

2

50

0603SMC-PA-4K-LF

0402

2

400

0402SMR-PA-10K-Sn-0

0402

2

400

0402SMC-PA-10K-LF

0201

2

400

0201SMR-PA-15K-Sn-0-P

0201

2

400

0201SMC-PA-15K-LF-M

01005

2

400

01005SMR-PA-TRB-LF-0

01005

2

400

01005SMC-PL-TRB-LF

008004

2

400

008004SMC-5K-LF



Item Code Description
11752 PCB-SMTA-H-ENIG
11753 PCB-SMTA-H-ImAg
11754 PCB-SMTA-H-OSP
11756 PCB-SMTA-H-Stencil Set





Call for 888-388-7808 or email for more information.
