Axial Leaded Through-hole Glass Diode package has been in use for over 50 years in the electronics industry. The body of these parts are glass and the package is hermetically sealed. The "DO" prefix is a JEDEC designation for through-hole diodes. The 34 and 35 references case size. These type of components are packaged on ammo pack or bulk. In most cases, these parts are sold as training aids to teach new operators how to solder.

Axial Leaded Through-Hole Glass Diode

Part Description

References

Case Size

Lead
Diameter

(JEDEC)

(EIAJ)

(Inch)

(mm)

DO-34

DO-34



0.0629" x 0.1197"

1.6 x 3.04mm

.55mm

DO-35

DO-35

SC-40

0.0728" x 0.1673"

1.85 x 4.25mm

.56mm

Notes

* Part is hermetically sealed glass package.

* Axial leaded (2 leads).

* Parts are packaged Ammo pack (5K per reel) or bulk.

* Lead-free available with 100% Sn alloy.

Part Description System



* Add "Ammo" to end of part number for Ammo T&R.

* Add "B" to end of part number for bulk.

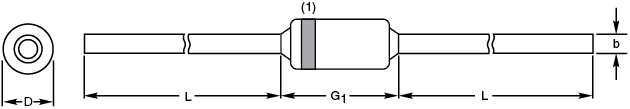

DO-34

Unit

b
Max

D
Max

G1Max

L
Min

mm

0.55

1.6

3.04

25.4

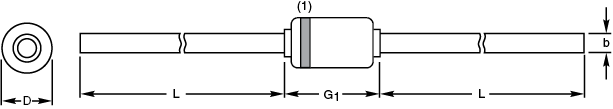

DO-35

Unit

b
Max

D
Max

G1Max

L
Min

mm

0.56

1.85

4.25

25.4
