TMV PoP - Through Mold Via Package Dummy Component



TMV® PoP Dummy
Through Mold Via Package - Discontinued

DISCONTINUED. After three years of development, Amkor has introduced the next generation PoP solution. This new technology is called Through Mold Via (TMV®). The new TMV® technology is used to create interconnect vias through the mold cap, it also provides a more stable bottom package that enables the use of thinner substrates with a larger die to package ratio. TMV® enabled POP can support single, stacked die for wirebond and FC designs.DISCONTINUED.

TMV® technology enables next generation PoPs by:

* Removing bottlenecks for fine pitch memory interfaces

* Enhancing warpage control and bottom package thickness reduction

* Increasing die to package size ratios

* Supporting wirebond, flip chip, stacked die and passive integration

* Improving board level solder joint life

White paper articles and technical presentations are available on Practical Components web site at www.practicalcomponents.com or Amkor Technology's web site at www.amkor.com.

TMV® PoP-Mating Top and Bottom Daisy Chain Samples

Part Description

I/O Count

Pitch

Body Size

Ball
Matrix

Ball
Alignment

Quantity
Per Tray

14mm Body Size

A-PoP200-.5mm-14mm-DC

200 (top package)

.5mm

14mm

27x27

Perimeter

119

A-TMV620-.4mm-14mm-DC

620 (bottom package)

.4mm

14mm

33x33

Perimeter

119



Notes

* Fine pitch 0.4mm bottom package footprints.

* Stacked package heights of 1.2mm nominal (see Stack Up table on
following pages).

* Dummy Package configurations compliant with JEDEC standards.

* Moisture Resistance Testing is JEDEC Level 3 @ 260 °C.

* Temp Cycle -55/+125 °C, 1000 cycles.

* HAST 130 °C, 85% RH, 96 hours.

* Temp/Humidity 85 °C/85%RH/1000 hours.

* High Temp Storage 150 °C, 1000 hours.

* Board level Thermal Cycle -40/+125 °C, 1000 cycles.

* Parts packaged in JEDEC matrix trays.

* PoPs are only available Pb-free (not Tin-Lead). Available alloys are: (SAC105) 98.5%Sn/1.0%Ag/0.5%Cu Top Package and (SAC125Ni) 98.2%Sn/1.2%Ag/0.5%Cu/0.5%Ni bottom package.

* It is recommended that parts be pre-baked at 125 °C for 48 hrs before using parts regarding moisture concern.

* PoP's are not available without solder balls.

Practical Components is the exclusive distributor of
Amkor Technology Mechanical Components.

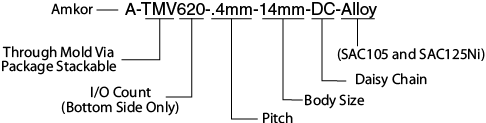

Part Description System


Ball Diameter

I/O Count

Ball Diameter

200

0.33mm

620

0.30mm



Notes

* Amkor supporting data is available on our website for: Board Level Reliability (BLR), PoP application notes, PoP Stencil & Stacking paper for SMT Conditions.
