MicroLeadFrame (MLF) Dummy Component



MLF®MicroLeadFrame®

Amkor's MicroLeadFrame® Dummy Package (MLF®) is a near CSP plastic encapsulated package with a copper leadframe substrate. This package uses perimeter lands on the bottom of the package to provide electrical contact to the PWB. The dummy MLF package also offers Amkor's ExposedPad technology as a thermal enhancement by having the die attach paddle exposed on the bottom of the package surface to provide an efficient heat path when soldered directly to the PWB.

MLF®€”MicroLeadFrame®

Part Description

Lead Count

Body Size

Pitch

Quantity
Per Tube

.4mm Pitch

A-MLF28-4mm-.4mm

28

4mm

.4mm

75

A-MLF48-6mm-.4mm

48

6mm

.4mm

50

A-MLF88-10mm-.4mm

88

10mm

.4mm

30

A-MLF100-12mm-.4mm

100

12mm

.4mm

25

.5mm Pitch

A-MLF12-3mm-.5mm

12

3mm

.5mm

100

A-MLF16-3mm-.5mm

16

3mm

.5mm

100

A-MLF20-4mm-.5mm

20

4mm

.5mm

75

A-MLF24-4mm-.5mm

24

4mm

.5mm

75

A-MLF28-5mm-.5mm

28

5mm

.5mm

60

A-MLF32-5mm-.5mm

32

5mm

.5mm

60

A-MLF36-6mm-.5mm

36

6mm

.5mm

50

A-MLF40-6mm-.5mm

40

6mm

.5mm

50

A-MLF44-7mm-.5mm

44

7mm

.5mm

43

A-MLF48-7mm-.5mm

48

7mm

.5mm

43

A-MLF52-8mm-.5mm

52

8mm

.5mm

37

A-MLF56-8mm-.5mm

56

8mm

.5mm

37

A-MLF64-9mm-.5mm

64

9mm

.5mm

33

A-MLF68-10mm-.5mm

68

10mm

.5mm

30

A-MLF72-10mm-.5mm

72

10mm

.5mm

30

.65mm Pitch

A-MLF8-3mm-.65mm

8

3mm

.65mm

100

A-MLF16-4mm-.65mm

16

4mm

.65mm

75

A-MLF20-5mm-.65mm

20

5mm

.65mm

60

A-MLF28-6mm-.65mm

28

6mm

.65mm

50

A-MLF32-7mm-.65mm

32

7mm

.65mm

43

A-MLF44-9mm-.65mm

44

9mm

.65mm

33

.8mm Pitch

A-MLF12-4mm-.8mm

12

4mm

.8mm

75

A-MLF16-5mm-.8mm

16

5mm

.8mm

60

A-MLF20-6mm-.8mm

20

6mm

.8mm

50

A-MLF28-7mm-.8mm

28

7mm

.8mm

43

Notes

* Dummy Parts are packaged in tubes (standard).

* Dummy Parts are available in trays or on tape and reel upon special request.

* Solder plating finish available is 100% Matte Sn.

* Moisture sensitivity level is JEDEC 1.

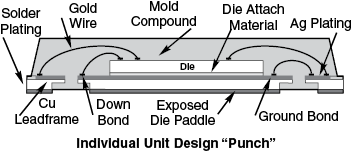

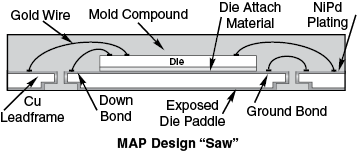

* Two MLF® designs are available: Punch or Saw (see the cross-section drawing).

* Small size (50% space reduction as
compared with TSSOP).

* MLF® package is a near CSP plastic
encapsulated package with a copper
leadframe substrate.

* MLF® is also known as QFN, MCC or MLP.

* 0.6mm to 1.5mm maximum height

* Body sizes ranging from 3 x 3mm
to 12 x 12mm.

* Pin counts and body sizes change on an ongoing basis.
Please call for updated listing of available packages.


Part Description System


Cross-Sections MLF®



A-MLF8-3x3-1dwg.pdf A-MLF8-3x3-2dwg.pdf
A-MLF8-3x3-3dwg.pdf A-MLF8-3x3-4dwg.pdf
A-MLF12-3x3-2dwg.pdf A-MLF12-3x3-4dwg.pdf
A-MLF12-4x4-1dwg.pdf A-MLF12-4x4-2dwg.pdf
A-MLF12-4x4-3dwg.pdf A-MLF12-4x4-4dwg.pdf
A-MLF16-3x3-1dwg.pdf A-MLF16-3x3-2dwg.pdf
A-MLF16-3x3-3dwg.pdf A-MLF16-3x3-4dwg.pdf
A-MLF16-4x4-1dwg.pdf A-MLF16-4x4-2dwg.pdf
A-MLF16-4x4-3dwg.pdf A-MLF16-5x5-1dwg.pdf
A-MLF16-5x5-2dwg.pdf A-MLF16-5x5-3dwg.pdf
A-MLF20-4x4-1dwg.pdf A-MLF20-4x4-2dwg.pdf
A-MLF20-4x4-3dwg.pdf A-MLF20-4x4-4dwg.pdf
A-MLF20-5x5-1dwg.pdf A-MLF20-5x5-2dwg.pdf
A-MLF20-5x5-3dwg.pdf A-MLF20-6x6-1dwg.pdf
A-MLF20-6x6-2dwg.pdf A-MLF20-6x6-3dwg.pdf
A-MLF20-6x6-4dwg.pdf A-MLF20-6x6-5dwg.pdf
A-MLF24-1dwg.pdf A-MLF24-2dwg.pdf
A-MLF24-3dwg.pdf A-MLF25-8x8-2dwg.pdf
A-MLF28-4x4-1dwg.pdf A-MLF28-4x4-2dwg.pdf
A-MLF28-4x4-3dwg.pdf A-MLF28-5x5-1dwg.pdf
A-MLF28-5x5-2dwg.pdf A-MLF28-5x5-3dwg.pdf
A-MLF28-6x6-1dwg.pdf A-MLF28-6x6-2dwg.pdf
A-MLF28-6x6-3dwg.pdf A-MLF28-6x6-4dwg.pdf
A-MLF28-6x6-5dwg.pdf A-MLF28-7x7-1dwg.pdf
A-MLF28-7x7-2dwg.pdf A-MLF28-7x7-3dwg.pdf
A-MLF32-7x7-2dwg.pdf A-MLF32-7x7-3dwg.pdf
A-MLF36-1dwg.pdf A-MLF36-2dwg.pdf
A-MLF32-5x5-1dwg.pdf A-MLF32-5x5-2dwg.pdf
A-MLF32-5x5-3dwg.pdf A-MLF32-7x7-1dwg.pdf
A-MLF32-7x7-2dwg.pdf A-MLF32-7x7-3dwg.pdf
A-MLF36-1dwg.pdf A-MLF36-2dwg.pdf
A-MLF36-3dwg.pdf A-MLF36-4dwg.pdf
A-MLF36-5dwg.pdf A-MLF40-6x6-1dwg.pdf
A-MLF40-6x6-2dwg.pdf A-MLF40-6x6-3dwg.pdf
A-MLF40-6x6-4dwg.pdf A-MLF40-6x6-5dwg.pdf
A-MLF44-7x7-1dwg.pdf A-MLF44-7x7-2dwg.pdf
A-MLF44-7x7-3dwg.pdf A-MLF44-7x74dwg.pdf
A-MLF44-9x9-1dwg.pdf A-MLF44-9x9-2dwg.pdf
A-MLF44-9x9-3dwg.pdf A-MLF48-6x6-2dwg.pdf
A-MLF48-6x6-3dwg.pdf A-MLF48-7x7-1dwg.pdf
A-MLF48-7x7-2dwg.pdf A-MLF48-7x7-3dwg.pdf
A-MLF48-7x7-4dwg.pdf A-MLF48-7x7-5dwg.pdf
A-MLF52-8x8-1dwg.pdf A-MLF52-8x8-3dwg.pdf
A-MLF64-1dwg.pdf A-MLF64-2dwg.pdf
A-MLF72-1dwg.pdf A-MLF72-2dwg.pdf
A-MLF88-1dwg.pdf A-MLF88-2dwg.pdf
A-MLF100-1dwg.pdf A-MLF100-2dwg.pdf
A-MLF100-3dwg.pdf A-MLF12-3x3-3dwg.pdf
A-MLF12-3x3-1dwg.pdf A-MLF48-6x6-1dwg.pdf
