Chip Array Thin Core Ball Grid Array (CTBGA) Dummy Component



CTBGA
ChipArray® Thin Core
Ball Grid Array

CTBGA ChipArray® Thin Core Ball Grid Array

Part Description

I/O Count

Pitch

Body Size

Ball
Matrix

Ball
Alignment

Quantity
Per Tray

Available Lead-Free
Alloys

.5mm Pitch

A-CTBGA84-.5mm-6mm

84

.5mm

6mm

10 x 10

Perimeter

608

SAC405, SAC105, or SAC305

A-CTBGA84-.5mm-7mm

84

.5mm

7mm

12 x 12

Perimeter

476

SAC405, SAC105, or SAC305

A-CTBGA108-.5mm-7mm

108

.5mm

7mm

12 x 12

Perimeter

476

SAC405, SAC105, or SAC305

A-CTBGA132-.5mm-8mm

132

.5mm

8mm

14 x 14

Perimeter

360

SAC405, SAC105, or SAC305

A-CTBGA228-.5mm-12mm

228

.5mm

12mm

22 x 22

Perimeter

189

SAC405, SAC105, or SAC305

.8mm Pitch

A-CTBGA49-.8mm-6mm

49

.8mm

6mm

7 x 7

Full Array

608

SAC405, SAC105, or SAC305

A-CTBGA49-.8mm-7mm

49

.8mm

7mm

7 x 7

Full Array

476

SAC405, SAC105, or SAC305

A-CTBGA64-.8mm-7mm

64

.8mm

7mm

8 x 8

Full Array

476

SAC405, SAC105, or SAC305

A-CTBGA64-.8mm-8mm

64

.8mm

8mm

8 x 8

Full Array

360

SAC405, SAC105, or SAC305

A-CTBGA100-.8mm-10mm

100

.8mm

10mm

10 x 10

Full Array

250

SAC405, SAC105, or SAC305

A-CTBGA160-.8mm-12mm

160

.8mm

12mm

14 x 14

Perimeter

198

SAC405, SAC105, or SAC305

A-CTBGA176-.8mm-13mm

176

.8mm

13mm

15 x 15

Perimeter

160

SAC405, SAC105, or SAC305

A-CTBGA208-.8mm-15mm

208

.8mm

15mm

17 x 17

Perimeter

126

SAC405, SAC105, or SAC305

1.0mm Pitch

A-CTBGA144-1.0mm-13mm

144

1.0mm

13mm

12 x 12

Full Array

160

SAC405, SAC105, or SAC305

Notes

* Dummy parts are packaged in JEDEC trays when available.

* All these dummy components are available daisy-chained.

* <0.12mm (5 mil) coplanarity.

* Solder ball material is Eutectic 63/37 SnPb.

* BT (Bismaleimide-Triazine) substrates or equivalent.

* Package thickness is 1.2mm max for 0.8mm and 1.0mm pitch packages.

* Package thickness is 1.1mm max for 0.5mm pitch packages.

* Moisture sensitivity is JEDEC level 3.

* Lead-free parts are available with (SAC405) 95.5% Sn/ 4.0% Ag/0.5% Cu alloy or 96.5%Sn/3.0%Ag/0.5%Cu alloy (SAC305) or (SAC105) 98.5%Sn/1.0%Ag/0.5%Cu is also available.

* New: CABGA, CVBGA and CTBGA parts are available without solder balls, which makes the package LGA.

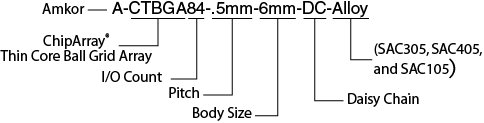

Part Description System


* Add "TR" to end of part description for Tape and Reel

* Add "SAC405" or "SAC105" or SAC305" to end of part description for Lead-Free.

* Add DC & Alloy to Part Number System after body size:
