TEG WM40-0103JY




Practical Components -TEG WM40-0103JY

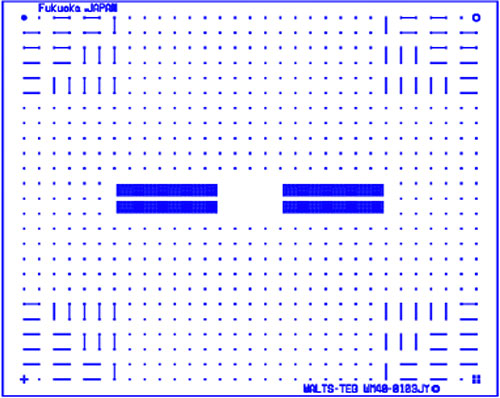

Chip Structure



  • Base Layer : P-TEOS
  • Metal layer : TiN / Al-0.5%Cu
  • Passivation Layer : HDP / P-SiN

*TEOS : Tetraethoxysilane



Specifications
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 10.00mm x 8.00mm
Function

Daisy Chain

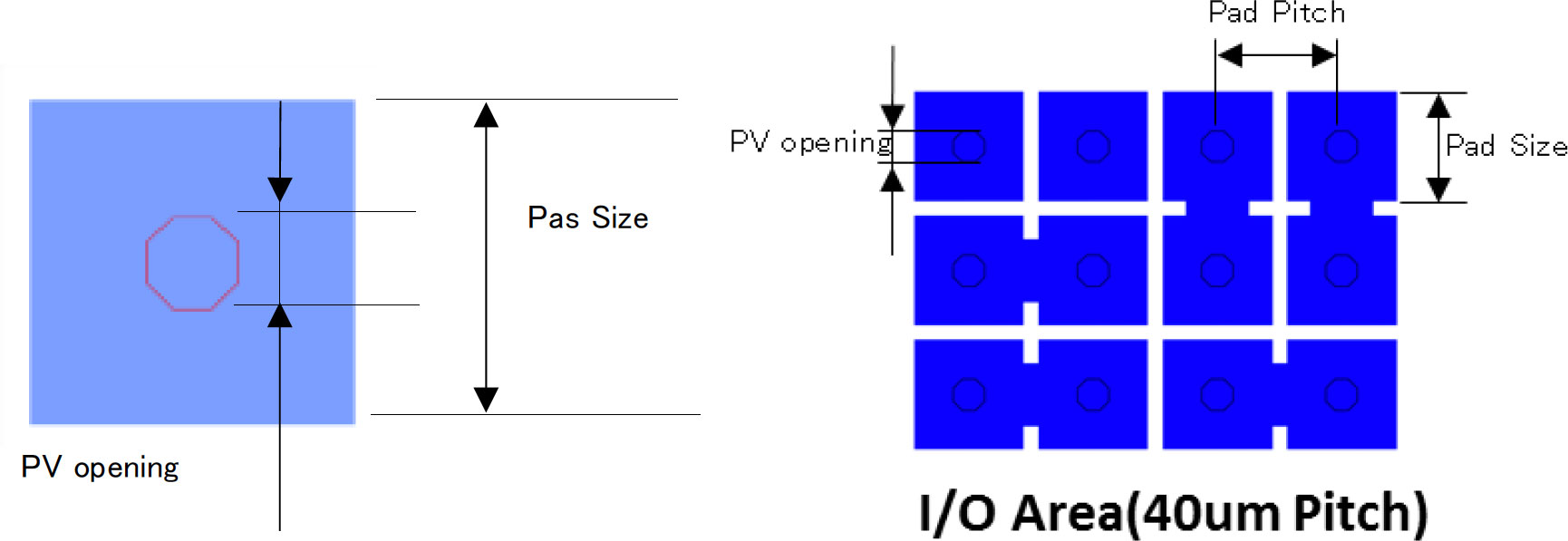

Pad Size 35μm
Passivation Operation φ10um (Octagon)
Number of Pad

I/O area : 40um pitch x 1200 pad
Dummy area : 300um pitch x 714 pad

Electrode Cu Pillar
Bump Size φ20μm
Bump Pitch

1. 40μm
2. 300μm

Bump Height

Cu10um+SnAg10um

Number of Chip

312 chips/wafer
