TEG IPWM40-0101JY




Practical Components-TEG IPWM40-0101JY



Chip Structure



  • Base Layer : P-TEOS
  • Metal layer : TiN / Al-0.5%Cu
  • Passivation Layer : HDP / P-SiN

*TEOS : Tetraethoxysilane



Specifications
Wafer Size 8 inch
Wafer Thickness 725±25μm

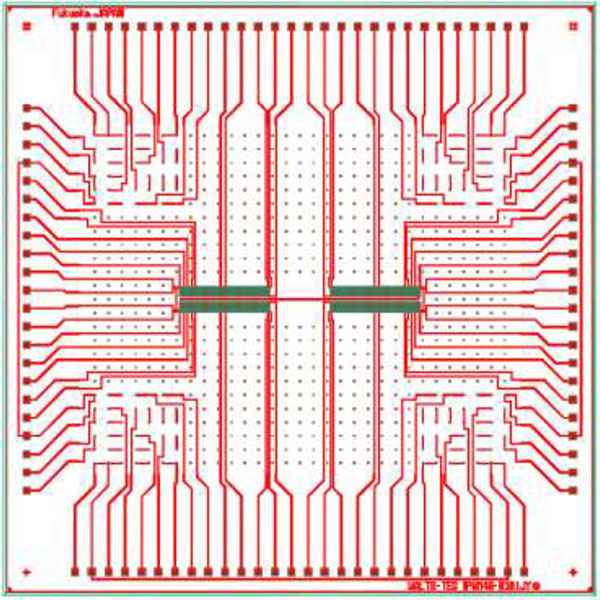

Chip Size 13.00mm x 13.00mm
Function

Daisy Chain
Bump Short Check
Breakdown Voltage Check between Bumps

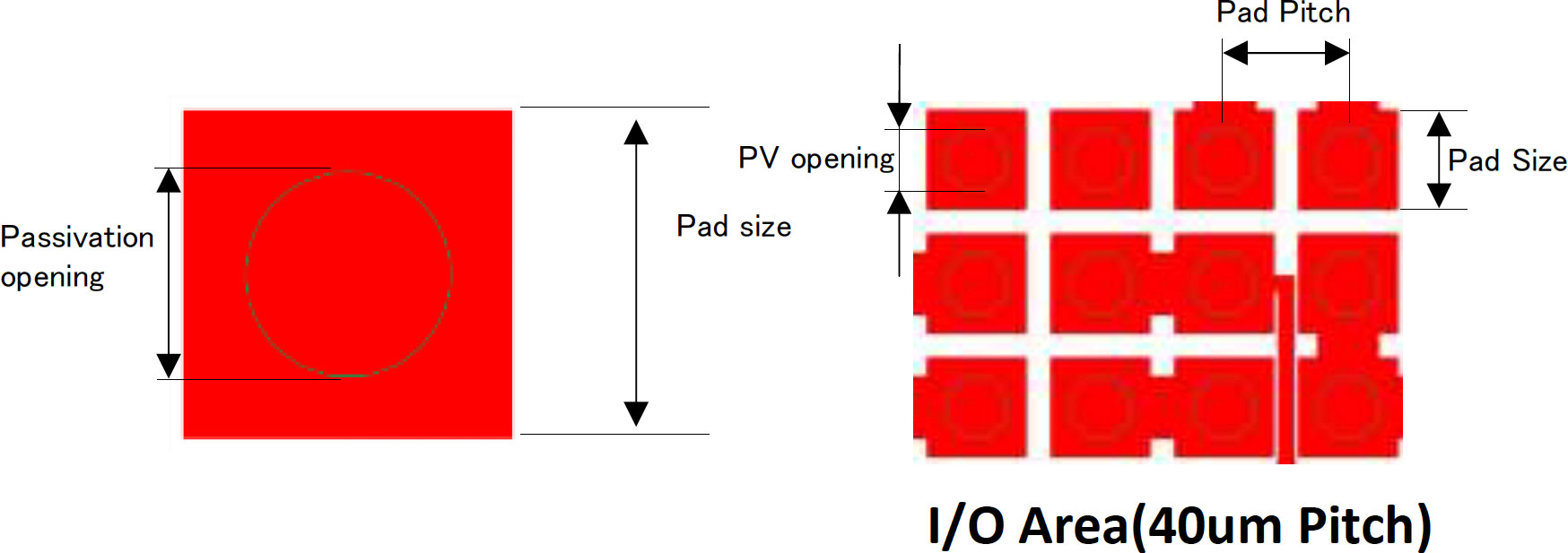

Pad Size 32μm
Passivation Operation φ20um
Number of Pad

1. 1200 pad
2. 714 pad
Probe Pad 72pad
(Same pad area as WM40-1010JY)

Electrode Electroless Ni/Au plating
Bump Size 25μm
Bump Pitch

1. 40μm
2. 300μm

Bump Height

φ2.5um

Number of Chip

148 chips/wafer
