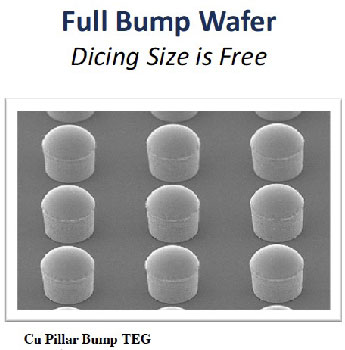

FBW






Specifications FBW200-0001JY FBW150-0001JY FBW130-0001JY FBW100-0001JY FBW80-0001JY
Wafer Size 8 inch 8 inch 8 inch 8 inch 8 inch
Wafer Thickness 725±25μm 725±25μm 725±25μm 725±25μm 725±25μm
Bump Pitch 200μm 150μm 130μm 100μm 80μm
Function x x x x x
Electrode Cu Pillar Cu Pillar Cu Pillar Cu Pillar Cu Pillar
Bump Size φ90μm φ75μm φ65μm φ50μm φ40μm
Bump Height Max.60μm Max.60μm Max.60μm Max.60μm Max.50μm
