Dummy Component Vacuum Handling


 If the Vacuum Handling Tool you are looking for is not shown below, please call us!



PRACTICAL HANDI-VAC™ VACUUM HANDLING TOOL

An inexpensive tool that no assembler should be without. Replaces tweezers for many applications. ESD safe with antistat treatment.

  • Selection of four probes with vacuum cups included.
  • Includes one 1/4" cup, on a 3/8" cup and two 1/8" cups.
  • Easily handles up to 3-ounce objects.
  • Totally self-contained vacuum.
  • No batteries to replace.
  • Can be included in all of your tool kits.
  • Good for handling surface mount components.
  • Vacuum cup rubber is ESD safe.
  • Made in the U.S.A.

Order Number: HV-Kit

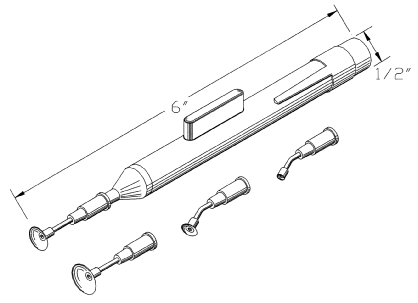

PRACTICAL PEN-VAC® PRO-SERIES HANDLING TOOL



  • Least expensive.
  • All metal ESD safe vacuum probes; two straight and two angled.
  • Four sizes of vacuum cups; 1/8", 1/4", 3/8" and 1/2" diameter.
  • Vacuum cups are made of black high temperature ESD safe silicone rubber.
  • Rugged all plastic static-dissipative body.
  • Body color available in black or gray.
  • All metal pocket clip.
  • Lifts up to 500 grams.
  • Made in USA Order Number: V8910-9BK-ESD

Order Number: V8910-9BK-ESD


PRACTICAL PEN-VAC™ VACUUM HANDLING TOOL



  • ESD safe units are supplied with a clear aluminum finish.
  • No batteries to replace.
  • Fits in you pocket like a pen.
  • Perfect for handling surface mount components.
  • Vacuum cup rubber is ESD safe.
  • Aluminum, 1/2" diameter body.
  • No vacuum hoses or power cords to get in your way
  • Lifts up to 500 grams.
  • Includes two 1/4" cups, two 3/8" cups and two 1/8" cups.
  • Has rear storage cap.
  • Quick change luer lock fitting.
  • Made in the USA

Order Number: V8901-LMS-ESD


PRACTICAL PAC-VAC™ VACUUM HANDLING TOOL



The PAC-VAC™ vacuum handling tool is a battery operated self-contained unit. This versatile unit can be clipped to your belt for one-handed portable operation. The PAC-VAC™ is constructed with ESD safe materials and comes complete with the following features:

  • A belt clip on the housing.
  • Four feet of straight vacuum hose—#VSH-1/16-4.
  • Four feet of coiled vacuum hose—#VCH-1/16-4.
  • A set of seven vacuum tips—#VCS-7-B.
  • A vacuum pick-up handle—#V3020-RF.
  • 9-volt disposable alkaline battery.
  • Compact design measures 108m x 61mm x 22.1mm (approx. 4-1/4" x 2-3/8" x 7/8").
  • Lightweight — only 156 grams.
  • Runs up to eight hours continuously on one 9-volt alkaline battery.
  • Produces vacuum of over ten inches of mercury.

 Order Number: V3200


PRACTICAL SMD-VAC™-GP VACUUM HANDLING TOOL



  • Perfect for pick-and-place operations.
  • Whisper quiet.
  • Diaphragm pump provides years of continuous service.
  • Durable, all metal construction.
  • All components, including vacuum cups, are ESD safe.
  • Three-wire power cord.
  • Small footprint (3" x 5") requires minimal bench space.
  • Develops over 5" Hg. of vacuum.

The SMD-VAC-™GP comes with:

  • 110 or 220 volt vacuum source
  • Four feet of 1/8" flexible vacuum hose
  • Four feet of 1/8" coiled vacuum hose
  • Vacuum handle with internal filter
  • Set of seven vacuum pumps
  • (Optional Vacuum Interrupter facilitates precision placement of SMT capacitors, resistors and MCM die)

Order Numbers: V8000 (110 volts) /  V8000-200 (220 volts)


PRACTICAL BULB-VAC™ VACUUM HANDLING TOOL

The BULB-VAC™ vacuum handling tool is for the user who needs very little accuracy placing parts.

  • The entire tool is constructed with ESD safe materials.
  • A needle protrudes out of the plastic tip to hold the vacuum cup in place.
  • This tool is available in four different styles.
  • Extra large vacuum reservoir provides extended holding time.

This tool is available in four different styles.
• (3/8" diameter vacuum cup)
• (1/2" diameter vacuum cup)
• (5/8" diameter vacuum cup)
• (3/4" diameter vacuum cup)

Order Numbers:
• BVJ-038-B
• BVJ-050-B
• BVJ-062-B
• BVJ-075-B
