PC015 Rev C IPC-7711/7721 Rework Training Kit


PC015 Rev C IPC-7711/7721 Rework Training Kit



The PC015 Rev C Kit is ideal for rework training or evaluating current rework procedures. This kit contains 2 fully populated boards and replacement components to enable removing and replacing ½ of the components. Reworked solder joints can then be visually compared to original solder joints (on components not reworked) on the same board.  Kit includes 2 boards which allows one to be used practice and one to be used for evaluation.



The IPC-7711/7721C Rework, Modification and Repair of Electronic Assemblies standard has received a complete procedure by procedure update to assure applicability to both lead free and traditional SnPb soldered assemblies. Included in this revision are the procedures previously released as change pages, an updated general information and common procedures section, new procedures for BGAs using focused IR Reflow Systems with integral preheater and general updates to all other procedures.



This solder training kit conforms to IPC 7711/7721 and is the industry standard on electronics Rework, Repair and Modification.   It is perfect for classroom settings and can also be ordered unassembled as a standard hand solder training kit.



This kit includes everything needed for repair and rework of electronic assemblies and printed circuit boards!

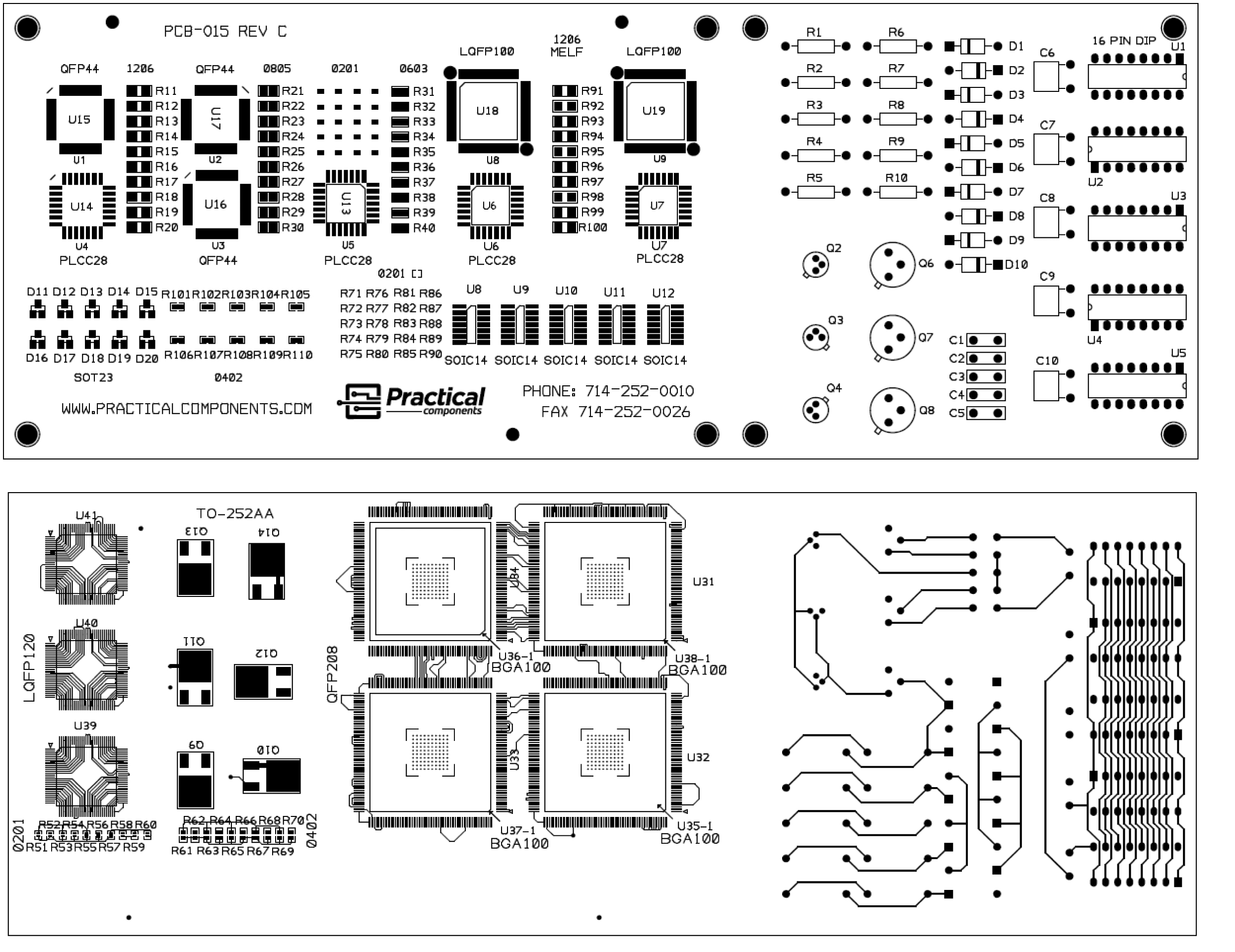

Overall board size is 9.850” x 3.750”

SMT board size: 6.000” x 3.750”

TH board size: 3.850” x 3.750”



Components added to Rev C are DO35, 0201SMR, 0402SMR, 1206SMR-Melf and DPAK (TO-252).

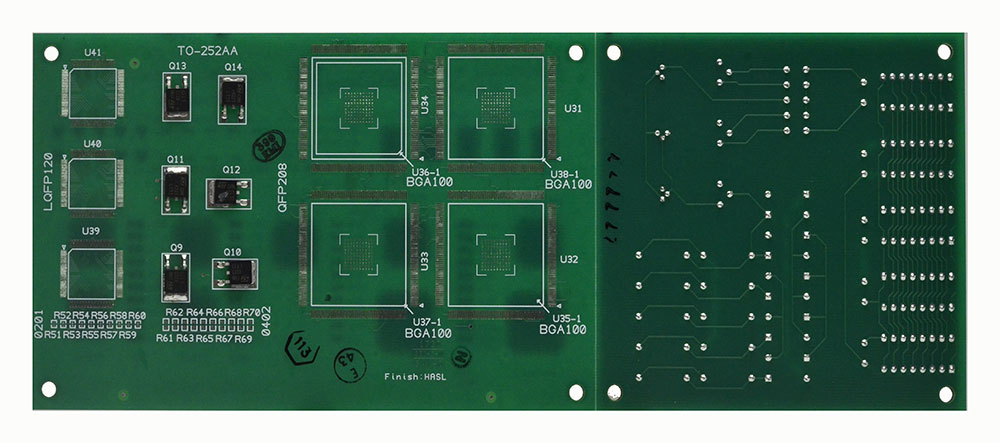

The only part that will be assembled on the bottom side is the DPAK (TO-252).



PC015-0-01-RWK-RevC-HASL
Description Qty Per Board
1/4-W-AR-TR-LF 10
DO35-TR 10
PDIP16T 5
TO18-B 3
TO5-3-B 3
TO5/TO18 SPACER 6
CK05-B-.2"LS 5
CK SPACER 5
0201SMR-PA-15K-Sn-P 20
0402SMR-PA-10K 10
0603SMR-PA-5K 10
0805SMR-PA-10K 10
1206SMR-PA-5K 10
1206SMR-PA-2.5K-Melf 10
A-QFP44-10mm-.8mm-3.2mm 3
A-LQFP100-14mm-.5mm-2.0-DC 2
DPAK(TO-252)-TR-2.5K 6
SOT23-TR 10
SO14GTR-3.8mm 5
PLCC28T 4

PC015-0-01-RWK-RevC-LF-ENIG
Description Qty Per Board
1/4-W-AR-TR-LF 10
DO35-TR 10
PDIP16T-Sn 5
CK05-B-.2"LS-LF 10
CK SPACER 10
TO18-B-Sn 3
TO5-3-B-Sn 3
TO5/TO18 SPACER 6
0201SMR-PA-15K-Sn-P 20
0402SMR-PA-10K-Sn-0 10
0603SMR-PA-5K-Sn 10
0805SMR-PA-5K-LF 10
1206SMR-PA-5K-SN-0 10
1206SMR-PA-2.5K-Melf-Sn 10
A-QFP44-10mm-.8mm-3.2mm-Sn 3
A-LQFP100-14mm-.5mm-2.0-DC-Sn 2
DPAK(TO-252)-TR-LF 6
SOT23-TR-Sn 10
SO14GTR-3.8mm-Sn 5
A-PLCC28T-DC-Sn 4


Pricing
  Price Qty Type Description
$135.00 PC015-0-01-RWK-RevC-HASL Tin-Lead Kit PC015-0-01-RWK-RevC-HASL Tin-lead Kit Part #17756
$135.00 PC015-0-01-RWK-RevC-LF-ENIG Lead-free Kit PC015-0-01-RWK-RevC-LF-ENIG Lead-free Kit Part #17757
