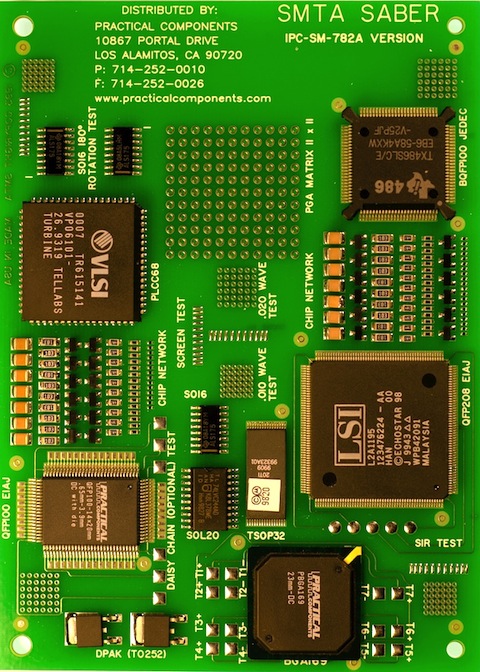

SMTA Saber Evaluation Board and Kit


Tin-Lead or Lead-Free Available! The SMTA Saber Evaluation Kit. Practical Components is licensed by SMTA to distribute the Saber Evaluation PC Board. The Saber Board includes land patterns for a wide variety of JEDEC and EIAJ components.



The Saber Board is used to evaluate:

* Pick and Place  equipment

* Reflow process

* Component placement accuracy

* Cleanliness

* Speed and accuracy of component placement

* Solder paste screening Notes

* Gerber Data and X, Y Theta Data are available if required at no charge.

* Digitized files provided by Aegis Software included at no charge.

* Lead-free parts are available.
