PCB-SIR Test Board and Kit

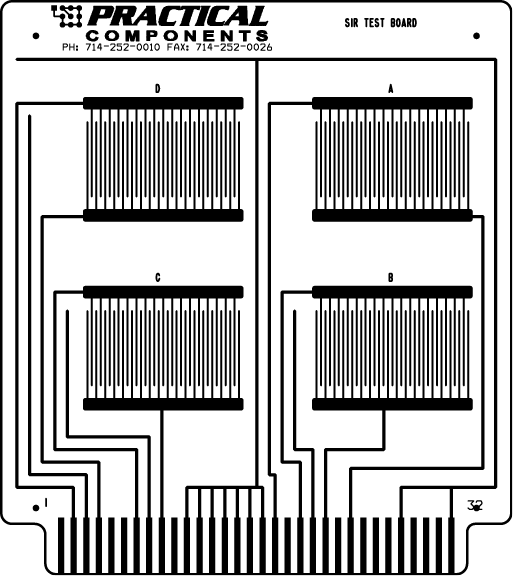

The Practical SIR board is double sided board to characterize fluxes by determining the degradation of electrical insulation resistance of rigid printed wiring board specimens after exposure to the specified flux. This test is carried out at height humidity and heat conditions. The board contains pads for LCC68 and A-PBGA208-1.0mm-17mm components. Kit is available Tin-Lead or Lead-Free (see note.)



Solder practice test vehicle PCB boards and kits are used for machine setup, evaluation, qualification, workflow analysis, prototyping, testing, solder profiling.



Notes

* Gerber and X, Y Theta data included at no charge.

* PBGA is available Lead-Free with SAC305 or SAC405 solder ball alloy’s. LCC is only available with Au castellations which is standard.





Order Number: PCB-SIR (Board Only)
