Small Outline Integrated Circuit (SOIC)



SOIC
Small Outline Integrated Circuit

Small Outline Package (SOIC) body size was compressed and the lead pitch tightened to obtain a smaller version SOIC. This yields an IC package that is a significant reduction in the size (compared to standard package). All IC assembly processes remain the same as with our standard SOICs.

SOIC Small Outline Integrated Circuit

Part Description

Number
of Pins

Lead
Style

Body
Width

Quantity
Per Tube

Tape
Width

Tape
Pitch

Quantity
13" Reel

SO8GT-3.8mm

8

Gull

3.8mm

100

12mm

8mm

2,500

SO14GT-3.8mm

14

Gull

3.8mm

50

16mm

8mm

2,500

SO16GT-3.8mm

16

Gull

3.8mm

48

16mm

8mm

2,500

SO16GT-7.6mm

16

Gull

7.6mm

46

16mm

12mm

1,000

SO20GT-7.6mm

20

Gull

7.6mm

38

24mm

12mm

1,000

SO24GT-7.6mm

24

Gull

7.6mm

31

16mm

12mm

1,000

SO28GT-7.6mm

28

Gull

7.6mm

25

24mm

12mm

1,000

Notes

* Standard lead pitch is 1.27mm.

* Tube quantity may vary.

* Parts available on Tape and Reel.

* Lead-free parts are available with 100% Matte Sn finish.

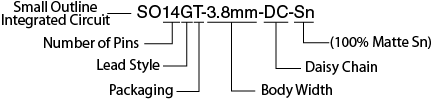

Part Description System



* Lead Style: G=Gull Wing.

* Packaging: T=Tubes, TR=Tape and Reel.

* Add "Sn" to end of part number for Lead-Free.


SOIC Component Dimensions

Component
Identifier

JEDEC
Number

L (mm)

S (mm)

W (mm)

T (mm)

A (mm)

B (mm)

H (mm)

P (mm)

Min

Max

Min

Max

Min

Max

Min

Max

Min

Max

Min

Max

Min

Max

Basic

SO8

MS-012 AA

5.80

6.30

3.26

4.55

0.33

0.51

0.40

1.27

3.80

4.00

4.80

5.00

1.35

1.75

1.27

SO14

MS-012 AB

5.80

6.30

3.26

4.55

0.33

0.51

0.40

1.27

3.80

4.00

8.55

8.75

1.35

1.75

1.27

SO16

MS-012 AC

5.80

6.30

3.26

4.55

0.33

0.51

0.40

1.27

3.80

4.00

9.80

10.00

1.35

1.75

1.27

SO16-7.6mm

MS-013 AA

10.00

10.65

7.46

8.85

0.33

0.51

0.40

1.27

7.40

7.60

10.10

10.50

2.35

2.65

1.27

SO20-7.6mm

MS-013 AC

10.00

10.65

7.46

8.85

0.33

0.51

0.40

1.27

7.40

7.60

12.60

13.00

2.35

2.65

1.27

SO28-7.6mm

MO-119 AB

10.29

10.64

8.21

9.01

0.36

0.51

0.53

1.04

7.40

7.60

18.08

18.39

2.34

2.64

1.27

SOIC Land Pattern Dimensions

Component
Identifier

Z (mm)

G (mm)

X (mm)

Y (mm)

C (mm)

D (mm)

E (mm)

Placement Grid
(No. of Grid Elements)

Ref

Ref

Ref

Ref

SO8

7.40

3.00

0.60

2.20

5.20

3.81

1.27

12 x 16

SO14

7.40

3.00

0.60

2.20

5.20

7.62

1.27

20 x 16

SO16

7.40

3.00

0.60

2.20

5.20

8.89

1.27

22 x 16

SO16-7.6mm

11.40

7.00

0.60

2.20

9.20

8.89

1.27

22 x 22

SO20-7.6mm

11.40

7.00

0.60

2.20

9.20

11.43

1.27

28 x 24

SO28-7.6mm

11.40

7.00

0.60

2.20

9.20

16.51

1.27

38 x 24
