(V)FQFP FusionQuad®





 Discontinued







(V)FQFP
FusionQuad®

Amkor's FusionQuad® represents a breakthrough in leadframe-based plastic packaging through the effective integration of ExposedPad QFP and MLF® technologies. FusionQuad® is based upon the addition of exposed bottom lands within a standard VQFP package format. The novel integration of bottom lands provides a cost-effective platform for increased lead count in a small form factor. FusionQuad® not only extends the I/O range of classic leadframe packaging to nearly 400 unique pins, it also delivers an approximate 50% reduction in package size for a given leadcount. Additionally, FusionQuad® provides excellent RF electrical performance characteristics with short signal paths to the bottom lands and high power dissipation capability with the solderable exposed die attach paddle.

Amkor's FusionQuad® provides an ideal package format for most IC semiconductor technologies including advanced mixed signal SoCs, motor drivers, MCUs, ASICs, DSPs and a variety of others. FusionQuad® is particularly well suited for applications requiring superior electrical or thermal performance in a cost constrained environment including hard disk drives, laptop PCs, Ethernet communication, digital television, data conversion and many others.

FusionQuad®

Part Description

Total Lead
Count

External
Leads

Internal
Leads

Body
Size

Body
Thickness

Lead
Pitch

Quantity
Per Tray

Single Row















A-(V)FQFP176(128/48)-14mm-.4mm

176

128

48

14mm sq

.8mm

.4mm

90

A-(V)FQFP184(128/56)-14mm-.4/.5mm

184

128

56

14mm sq

.8mm

.4/.5mm

90

A-(V)FQFP196(148/48)-16mm-.4/.5mm

196

148

48

16mm sq

.8mm

.4/.5mm

84

A-(V)FQFP220(148/72)-16mm-.4mm

220

148

72

16mm sq

.8mm

.4mm

84

A-(V)FQFP280(224/56)-24mm-.4/.5mm

280

224

56

24mm sq

1.0mm

.4/.5mm

40

A-(V)FQFP304(224/80)-24mm-.4mm

304

224

80

24mm sq

1.0mm

.4mm

40

Dual Row

A-(V)FQFP216(100/116)-14mm-.5mm

216

100

116

14mm sq

.8mm

.5mm

90

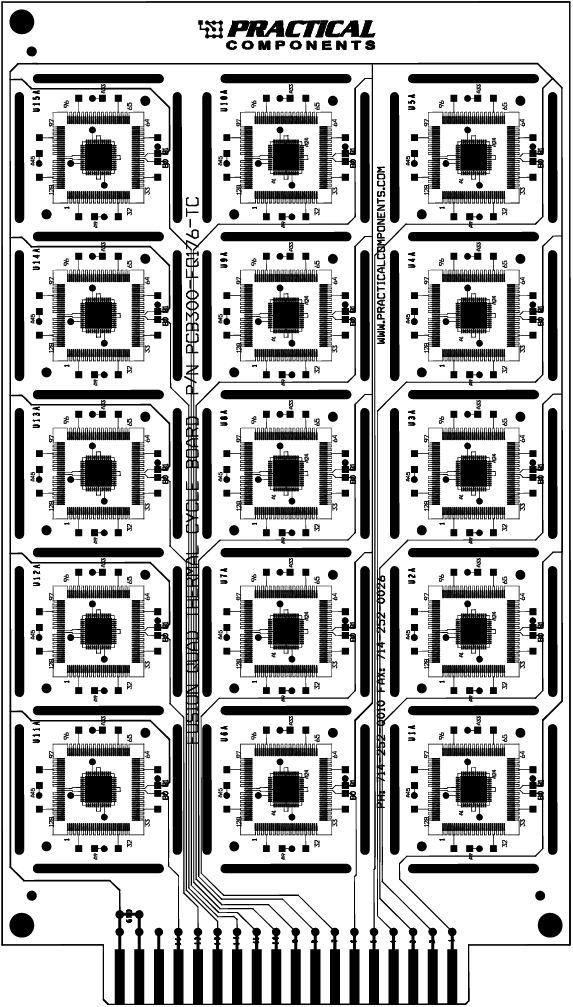

FusionQuad®-176 pin Single Row Design
Standard 14mm x 14mm VQFP 128LD 0.5mm External Lead Pitch



Additional 48 pins on bottom at 0.5mm Pitch
Order Number: A-VQFP176(128/48)-14mm-0.5-DC-Sn

Single Row Exposed Land Design

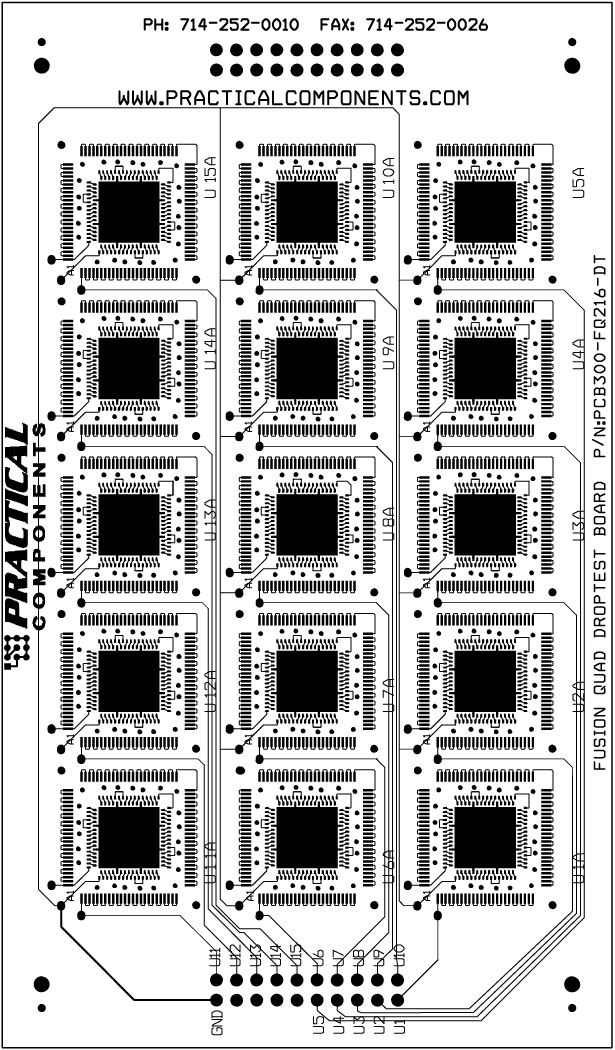

FusionQuad®-216 pin Dual Row Design


Standard 14mm x 14mm VQFP 100L 0.5mm External Lead Pitch





Additional 116 pins on
bottom at 0.5mm Pitch

Double Row Exposed Land Design
